产品介绍

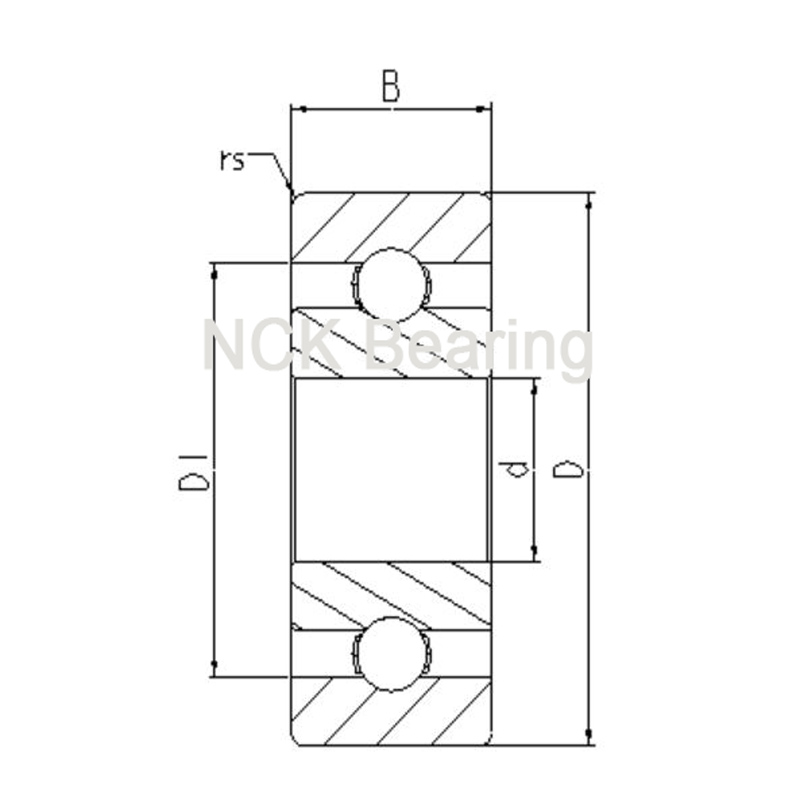

| Part Number |
d (mm) |
D (mm) |
B1 (mm) | r1 min (mm) | Cr (N) | C0r (N) | Cr (kgf) | C0r (kgf) |
Speed limit Grease (rpm) |
Speed limit Oil (rpm) |
Mass (g) |
| 681 | 1 | 3 | 1 | 0.05 | 80 | 23 | 8 | 2.5 | 130000 | 150000 | 0.03 |
| MR31 | 1 | 3 | 1.5 | 0.05 | 80 | 23 | 8 | 2.5 | 130000 | 150000 | 0.04 |
| 691 | 1 | 4 | 1.6 | 0.1 | 138 | 35 | 14 | 3.5 | 100000 | 120000 | 0.09 |
| MR41X | 1.2 | 4 | 1.8 | 0.1 | 138 | 35 | 14 | 3.5 | 110000 | 130000 | 0.1 |
| 681X | 1.5 | 4 | 1.2 | 0.05 | 112 | 33 | 11 | 3.5 | 100000 | 120000 | 0.07 |
| 691X | 1.5 | 5 | 2 | 0.15 | 237 | 69 | 24 | 7 | 85000 | 100000 | 0.17 |
| 601X | 1.5 | 6 | 2.5 | 0.15 | 330 | 98 | 34 | 10 | 75000 | 90000 | 0.33 |
| 682 | 2 | 5 | 1.5 | 0.08 | 169 | 50 | 17 | 5 | 85000 | 100000 | 0.12 |
| MR52B | 2 | 5 | 2 | 0.1 | 187 | 58 | 19 | 6 | 85000 | 100000 | 0.16 |
| 692 | 2 | 6 | 2.3 | 0.15 | 330 | 98 | 34 | 10 | 75000 | 90000 | 0.28 |
| MR62 | 2 | 6 | 2.5 | 0.15 | 330 | 98 | 34 | 10 | 75000 | 90000 | 0.3 |
| MR72 | 2 | 7 | 2.5 | 0.15 | 385 | 127 | 39 | 13 | 63000 | 75000 | 0.45 |
| 602 | 2 | 7 | 2.8 | 0.15 | 385 | 127 | 39 | 13 | 63000 | 75000 | 0.51 |
| 682X | 2.5 | 6 | 1.8 | 0.08 | 208 | 74 | 21 | 7.5 | 71000 | 80000 | 0.23 |
| 692X | 2.5 | 7 | 2.5 | 0.15 | 385 | 127 | 39 | 13 | 63000 | 75000 | 0.41 |
| MR82X | 2.5 | 8 | 2.5 | 0.2 | 560 | 179 | 57 | 18 | 60000 | 67000 | 0.56 |
| 602X | 2.5 | 8 | 2.8 | 0.15 | 550 | 175 | 56 | 18 | 60000 | 71000 | 0.63 |
| MR63 | 3 | 6 | 2 | 0.1 | 208 | 74 | 21 | 7.5 | 71000 | 80000 | 0.2 |
| 683A | 3 | 7 | 2 | 0.1 | 390 | 130 | 40 | 13 | 63000 | 75000 | 0.32 |
| MR83 | 3 | 8 | 2.5 | 0.15 | 560 | 179 | 57 | 18 | 60000 | 67000 | 0.54 |
| 693 | 3 | 8 | 3 | 0.15 | 560 | 179 | 57 | 18 | 60000 | 67000 | 0.61 |
| MR93 | 3 | 9 | 2.5 | 0.2 | 570 | 187 | 58 | 19 | 56000 | 67000 | 0.73 |
| 685 |
5
|
11
|
3
|
0.15
|
715
|
281
|
73
|
29
|
45000
|
53000
|
1.2
|
| 695 |
5
|
13
|
4
|
0.2
|
1080
|
430
|
110
|
44
|
43000
|
50000
|
2.45
|
| 605 |
5
|
14
|
5
|
0.2
|
1330
|
505
|
135
|
52
|
40000
|
50000
|
3.54
|
| 625 |
5
|
16
|
5
|
0.3
|
1730
|
670
|
177
|
68
|
36000
|
43000
|
4.95
|
| 635 |
5
|
19
|
6
|
0.3
|
2340
|
885
|
238
|
90
|
32000
|
40000
|
8.56
|
| MR106 |
6
|
10
|
2.5
|
0.15
|
495
|
218
|
51
|
22
|
45000
|
53000
|
0.56
|
| MR126 |
6
|
12
|
3
|
0.2
|
715
|
292
|
73
|
30
|
43000
|
50000
|
1.27
|
| 686A |
6
|
13
|
3.5
|
0.15
|
1080
|
440
|
110
|
45
|
40000
|
50000
|
1.91
|
| 696 |
6
|
15
|
5
|
0.2
|
1730
|
670
|
177
|
68
|
40000
|
45000
|
3.88
|
| 606 |
6
|
17
|
6
|
0.3
|
2260
|
835
|
231
|
85
|
38000
|
45000
|
5.97
|
| 626 |
6
|
19
|
6
|
0.3
|
2340
|
885
|
238
|
90
|
32000
|
40000
|
8.15
|
| 636 |
6
|
22
|
7
|
0.3
|
3300
|
1370
|
335
|
140
|
30000
|
36000
|
14
|
| MR117 |
7
|
11
|
2.5
|
0.15
|
455
|
201
|
47
|
21
|
43000
|
50000
|
0.62
|
| MR137 |
7
|
13
|
3
|
0.2
|
540
|
276
|
55
|
28
|
40000
|
48000
|
1.58
|
| 687 |
7
|
14
|
3.5
|
0.15
|
1170
|
510
|
120
|
52
|
40000
|
45000
|
2.13
|
| 697 |
7
|
17
|
5
|
0.3
|
1610
|
710
|
164
|
73
|
36000
|
43000
|
5.26
|
| 607 |
7
|
19
|
6
|
0.3
|
2340
|
885
|
238
|
90
|
36000
|
43000
|
7.67
|
| 627 |
7
|
22
|
7
|
0.3
|
3300
|
1370
|
335
|
140
|
30000
|
36000
|
12.7
|
| 637 |
7
|
26
|
9
|
0.3
|
4550
|
1970
|
465
|
201
|
28000
|
34000
|
24
|
| MR128 |
8
|
12
|
2.5
|
0.15
|
545
|
274
|
56
|
28
|
40000
|
48000
|
0.71
|
| MR148 |
8
|
14
|
3.5
|
0.2
|
820
|
385
|
83
|
39
|
38000
|
45000
|
1.86
|
| 688A |
8
|
16
|
4
|
0.2
|
1610
|
710
|
164
|
73
|
36000
|
43000
|
3.12
|
| 698 |
8
|
19
|
6
|
0.3
|
2240
|
910
|
228
|
93
|
36000
|
43000
|
7.23
|
| 608 |
8
|
22
|
7
|
0.3
|
3300
|
1370
|
335
|
140
|
34000
|
40000
|
12.1
|
| 628 |
8
|
24
|
8
|
0.3
|
3350
|
1430
|
340
|
146
|
28000
|
34000
|
17.2
|
| 638 |
8
|
28
|
9
|
0.3
|
4550
|
1970
|
465
|
201
|
28000
|
34000
|
28.3
|
| 689 |
9
|
17
|
4
|
0.2
|
1330
|
665
|
136
|
68
|
36000
|
43000
|
3.53
|
| 699 |
9
|
20
|
6
|
0.3
|
1720
|
840
|
175
|
86
|
34000
|
40000
|
8.45
|
| 609 |
9
|
24
|
7
|
0.3
|
3350
|
1430
|
340
|
146
|
32000
|
38000
|
14.5
|
| 629 |
9
|
26
|
8
|
0.6
|
4550
|
1970
|
465
|
201
|
28000
|
34000
|
19.5
|
| 639 |
9
|
30
|
10
|
0.6
|
5100
|
2390
|
520
|
244
|
24000
|
30000
|
36.5
|
