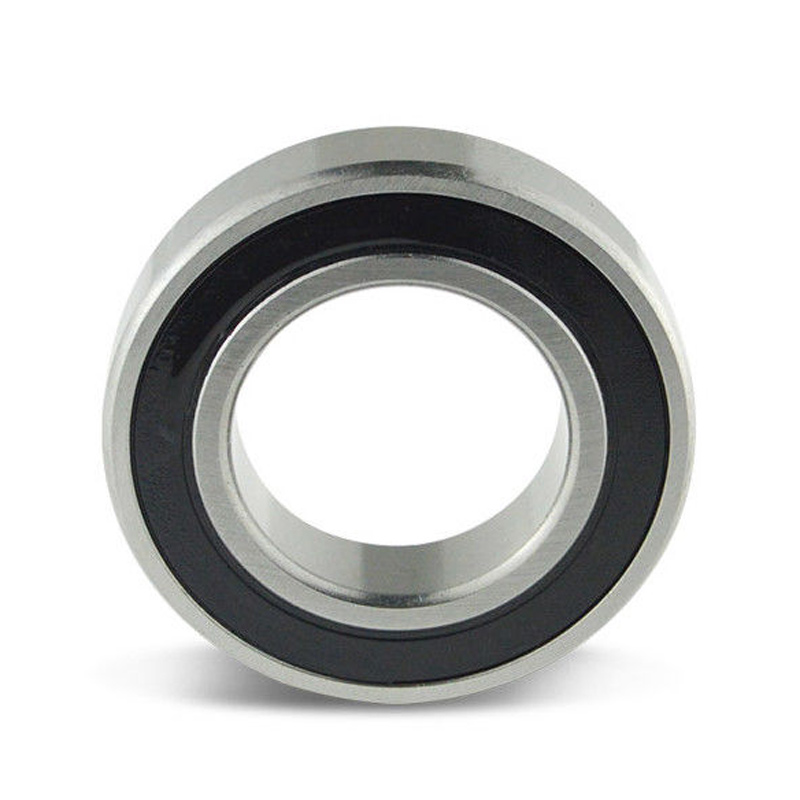

Product Introduction
| Part Number | d (mm) | D(mm) | B1 (mm) | r1 min (mm) | Cr (KN) | C0r (KN) |
Speed limit Grease (rpm) |
Speed limit Oil (rpm) |
Mass (kg) |
| 2204TV | 20 | 47 | 18 | 1 | 14,3 | 3,55 | 14000 | 17000 | 0,136 |
| 2205TV | 25 | 52 | 18 | 1 | 17 | 4,4 | 13000 | 16000 | 0,159 |
| 2206TV | 30 | 62 | 20 | 1 | 25,5 | 6,95 | 9500 | 12000 | 0.259 |
| 2207TV | 35 | 72 | 23 | 1,1 | 32 | 9 | 8000 | 9500 | 0,404 |
| 2208TV | 40 | 80 | 23 | 1,1 | 31,5 | 9,5 | 7500 | 9000 | 0,488 |
| 2209TV | 45 | 85 | 23 | 1,1 | 28 | 9 | 7000 | 8500 | 0,527 |
| 2210TV | 50 | 90 | 23 | 1,1 | 28 | 9,5 | 6700 | 8000 | 0,567 |
| 2211TV | 55 | 100 | 25 | 1,5 | 39 | 12,7 | 5600 | 6700 | 0,763 |
| 2212TV | 60 | 110 | 28 | 1,5 | 47,5 | 16,6 | 5300 | 6300 | 1,08 |
| 2213TV | 65 | 120 | 31 | 1,5 | 57 | 19,3 | 4500 | 5300 | 1,4 |
| 2214J | 70 | 125 | 31 | 1,5 | 44 | 17 | 4800 | 5600 | 1,59 |
| 2215TV | 75 | 130 | 31 | 1,5 | 44 | 18 | 4500 | 5300 | 1,67 |
| 2216TV | 80 | 140 | 33 | 2 | 51 | 21,2 | 4300 | 5000 | 2,13 |
| 2217M | 85 | 150 | 36 | 2 | 58,5 | 23,6 | 4000 | 4800 | 2,61 |
| 2218TV | 90 | 160 | 40 | 2 | 71 | 28,5 | 3600 | 4300 | 3,34 |
| 2219M | 95 | 170 | 43 | 2,1 | 83 | 34 | 3400 | 4000 | 4,32 |
| 2220M | 100 | 180 | 46 | 2,1 | 98 | 40,5 | 3200 | 3800 | 5,22 |
