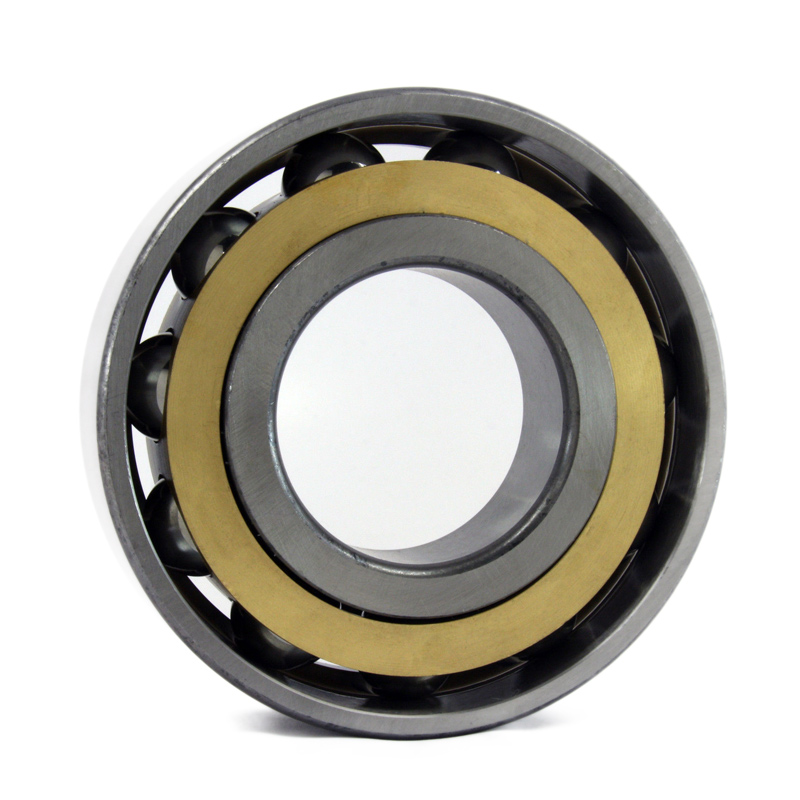

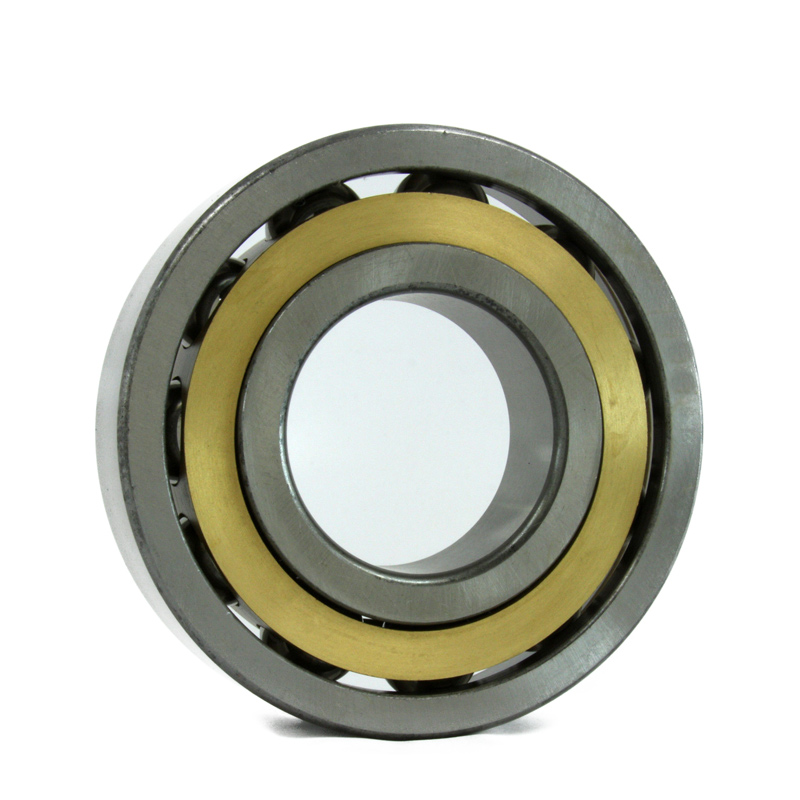

Product Introduction
|
Part Number
|
d (mm) | D (mm) | B (mm) | r12 | r34 | Rated load cr (kN) | Rated load cor (kN) |
Limit Speed (grease) |
Limit Speed (oil) |
Mass
approx. (kg) |
| 7305C | 25 | 62 | 17 | 1.1 | 0.6 | 28.6 | 16 | 10000 | 15000 | 0.224 |
| 7305BM | 25 | 62 | 17 | 1.1 | 0.6 | 24.7 | 14 | 9000 | 13000 | 0.277 |
| 7306C | 30 | 72 | 19 | 1.1 | 0.6 | 31.8 | 21 | 9000 | 13000 | 0.346 |
| 7306ACM | 30 | 72 | 19 | 1.1 | 0.6 | 31 | 19.5 | 8000 | 11000 | 0.413 |
| 7306BM | 30 | 72 | 19 | 1.1 | 0.6 | 33.6 | 18 | 8000 | 11000 | 0.371 |
| 7307C | 35 | 80 | 21 | 1.5 | 0.6 | 40.3 | 26 | 8000 | 11000 | 0.335 |
| 7307ACM | 35 | 80 | 21 | 1.5 | 0.6 | 39 | 25 | 7800 | 1050 | 58.5 |
| 7307BM | 35 | 80 | 21 | 1.5 | 0.6 | 39 | 25 | 7500 | 10000 | 0.551 |
| 7307B | 35 | 80 | 21 | 1.5 | 0.6 | 39 | 25 | 6000 | 8000 | 0.481 |
| 7308C | 40 | 90 | 23 | 1.5 | 0.6 | 46.8 | 32.5 | 7600 | 10000 | 0.624 |
| 7308ACM | 40 | 90 | 23 | 1.5 | 0.6 | 46.8 | 31 | 6000 | 8000 | 0.711 |
| 7308B | 40 | 90 | 23 | 1.5 | 0.6 | 46.8 | 30 | 5100 | 6800 | 0.653 |
| 7308BM | 40 | 90 | 23 | 1.5 | 0.6 | 46.8 | 30 | 6300 | 8500 | 0.711 |
| 7309C | 45 | 100 | 25 | 1.5 | 0.6 | 63.7 | 42.5 | 7000 | 9500 | 0.834 |
| 7309C/P4 | 45 | 100 | 25 | 1.5 | 0.6 | 64.1 | 42.5 | 7000 | 9500 | 0.834 |
| 7309ACM | 45 | 100 | 25 | 1.5 | 0.6 | 65 | 45 | 6000 | 8000 | 1.02 |
| 7309BM | 45 | 100 | 25 | 1.5 | 0.6 | 68.3 | 39.5 | 5600 | 7500 | 1.02 |
| 7310ACM | 50 | 110 | 27 | 2 | 1 | 71.5 | 49 | 5600 | 7500 | 1.21 |
| 7310BM | 50 | 110 | 27 | 2 | 1 | 70 | 44 | 5000 | 6700 | 1.17 |
| 7310C | 50 | 110 | 27 | 2 | 1 | 75.4 | 51 | 7000 | 8700 | 1.04 |
| 7310CM | 50 | 110 | 27 | 2 | 1 | 75.4 | 51 | 7000 | 8700 | 1.21 |
| 7310B | 50 | 110 | 27 | 2 | 1 | 70 | 44 | 4000 | 5400 | 1.05 |
| 7311CM | 55 | 120 | 29 | 2 | 1 | 92.3 | 65 | 7000 | 8700 | 1.65 |
| 7311C | 55 | 120 | 29 | 2 | 1 | 92.3 | 65 | 7000 | 8700 | 1.44 |
| 7311AC | 55 | 120 | 29 | 2 | 1 | 91 | 65 | 5000 | 6700 | 1.44 |
| 7311ACM | 55 | 120 | 29 | 2 | 1 | 88.4 | 63 | 5000 | 6700 | 1.65 |
| 7311ACQ1 | 55 | 120 | 29 | 2 | 1 | 88.4 | 63 | 5000 | 6700 | 1.64 |
| 7311BM | 55 | 120 | 29 | 2 | 1 | 81 | 56 | 4500 | 6300 | 1.61 |
| 7312AC | 60 | 130 | 31 | 2.1 | 1.1 | 94.9 | 67 | 4800 | 6300 | 1.8 |
| 7312AC/P4 | 60 | 130 | 31 | 2.1 | 1.1 | 95 | 67 | 4800 | 6300 | 1.82 |
| 7312ACM | 60 | 130 | 31 | 2.1 | 1.1 | 94.9 | 67 | 4800 | 6300 | 2.12 |
| 7312BM | 60 | 130 | 31 | 2.1 | 1.1 | 91 | 60 | 4300 | 5600 | 2.14 |
| 7312B | 60 | 130 | 31 | 2.1 | 1.1 | 91 | 60 | 3500 | 4500 | 1.86 |
| 7312CM | 60 | 130 | 31 | 2.1 | 1.1 | 83.6 | 70 | 4500 | 6000 | 2.03 |
| 7313ACM | 65 | 140 | 31 | 2.1 | 1.1 | 105 | 67 | 4500 | 6000 | 2.16 |
| 7313CM | 65 | 140 | 33 | 2.1 | 1.1 | 120 | 88 | 8000 | 10000 | 2.5 |
| 7313CJ | 65 | 140 | 33 | 2.1 | 1.1 | 120 | 88 | 6400 | 8000 | 2.23 |
| 7313C | 65 | 140 | 33 | 2.1 | 1.1 | 120 | 88 | 6300 | 8000 | 2.23 |
| 7313ACJ | 65 | 140 | 33 | 2.1 | 1.1 | 114 | 84 | 3400 | 4800 | 2.24 |
| 7313AC | 65 | 140 | 33 | 2.1 | 1.1 | 114 | 84 | 4300 | 6000 | 2.24 |
| 7313BM | 65 | 140 | 33 | 2.1 | 1.1 | 101 | 75 | 3800 | 5300 | 2.48 |
| 7313B | 65 | 140 | 33 | 2.1 | 1.1 | 101 | 75 | 3000 | 4200 | 1.95 |
| 7314C | 70 | 150 | 35 | 2.1 | 1.1 | 134 | 100 | 6500 | 8000 | 2.69 |
| 7314CM | 70 | 150 | 35 | 2.1 | 1.1 | 134 | 100 | 6500 | 8000 | 3.04 |
| 7314AC | 70 | 150 | 35 | 2.1 | 1.1 | 129 | 96 | 4000 | 5300 | 2.69 |
| 7314ACM | 70 | 150 | 35 | 2.1 | 1.1 | 129 | 96 | 4000 | 5300 | 3.04 |
| 7314B | 70 | 150 | 35 | 2.1 | 1.1 | 114 | 86 | 3200 | 4200 | 2.85 |
| 7314BM | 70 | 150 | 35 | 2.1 | 1.1 | 114 | 86 | 3600 | 5000 | 3.16 |
| 7315CM | 75 | 160 | 37 | 2.1 | 1.1 | 146 | 113 | 5800 | 7000 | 3.57 |
| 7315CJ | 75 | 160 | 37 | 2.1 | 1.1 | 146 | 113 | 4800 | 5600 | 3.11 |
